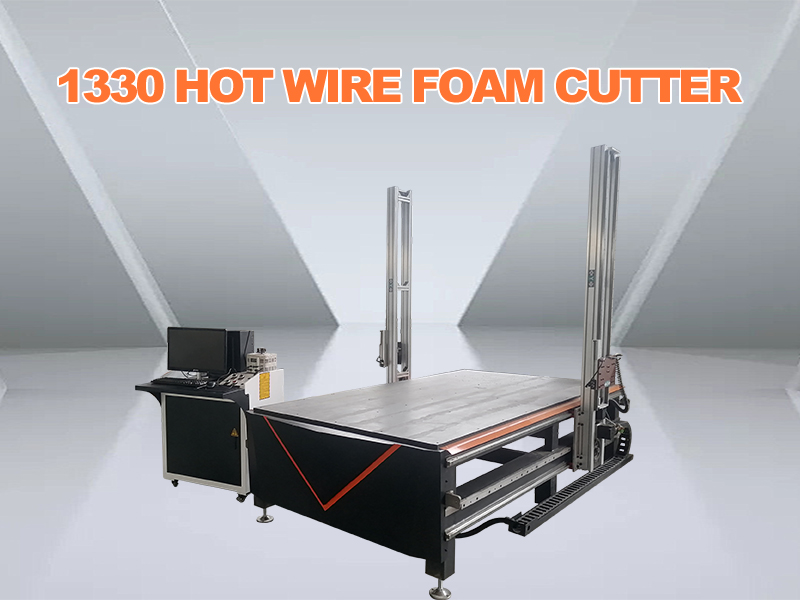

1330 Hot Wire Foam Cutter
1330 Hot Wire Foam Cutter. The workbench is made of 20mm thick high-density polyester board with high flatness and high temperature resistance.It is widely used for foam sculpture, EPS lines, insulation bricks, packaging and other foam applications.
Model:CX-1330
Send Inquiry
Product Description
1330 Hot Wire Foam Cutter
Product Feature:
11.Equipment easy maintenance
2.MACH3 control system , easy to use.
3.High speed stepper motor with 860 drives.
4.The workbench is made of 20mm thick high-density polyester board with high flatness and high temperature resistance.

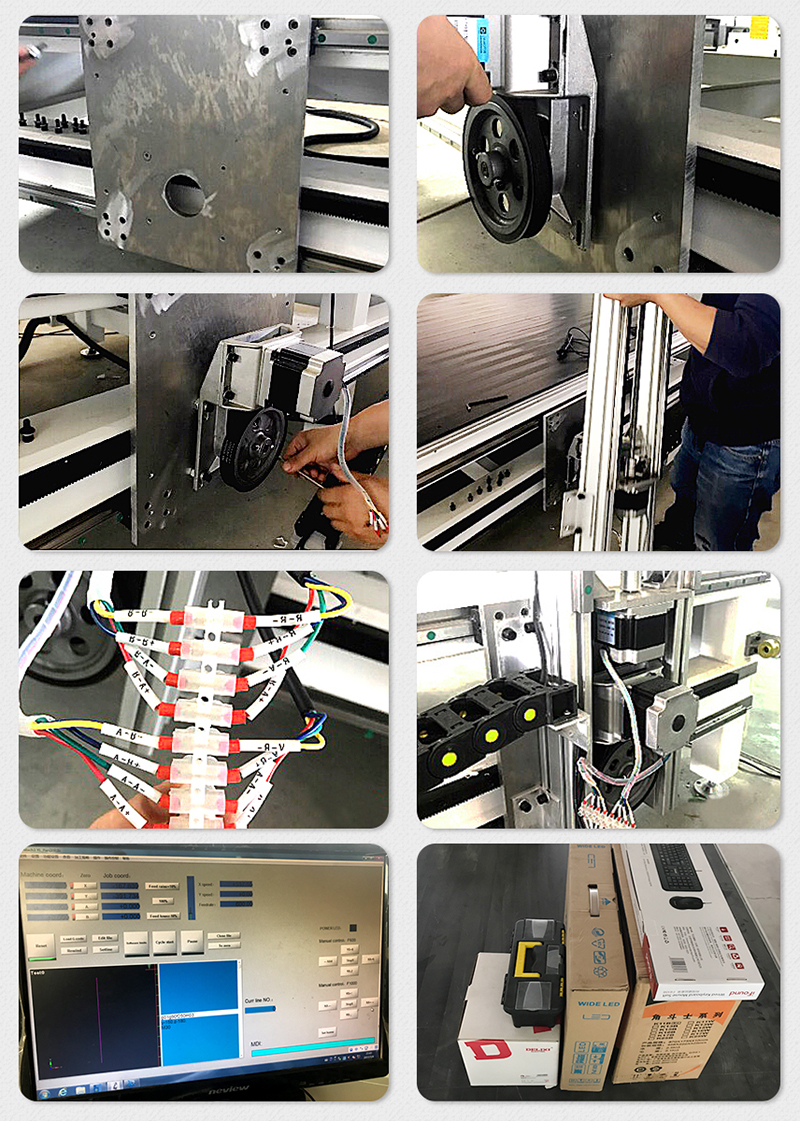

Detail Image:
Specification:
|
Model |
CX-1330 |
|
Common Dimensions |
1300X 1300 X3000mm |
|
Cutting Accuracy |
± 0.2mm (heating wire material, environment, foam humidity and other factors) |
|
File Format |
G-code |
|
Workbench Structure |
Welding of thickened square tubes (precision milling of the five sided machining center on the rack guide surface) |
|
Working Voltage |
AC220V/50HZ (customizable for foreign voltage) |
|
Transmission Mode |
X-axis/Y-axis: double high-precision 20 # square rail with one high-precision 1.25m diagonal rack transmission |
|
Dragon Gate |
Widening and thickening of profiles (double gantry with crossbeam support column) |
|
Drawing Software |
CaxaCAD |
|
Operating System |
MACH3 (supports cutting cones and 2D plans) |
|
Driver |
860 drives |
|
Drive Motor |
High speed stepper motor (450A) |
|
Control Cabinet |
New export independent cabinet |
|
Worktable |
20mm thick high-density polyester board (precision milling by machining center) with high flatness and high temperature resistance |
|
Control |
New industrial computer |
|
Voltage Regulator Power |
1KVA (customizable with larger voltage regulators) |
|
Cable |
High flexible and wear-resistant shielded cable |
|
Bed Weight |
About 800 kilograms |
|
Operating Software |
260 operation software automatic programming is simple and convenient, with automatic path planning |
|
Optional Features |
Rotating disc: diameter 400mm, other sizes can be customized |

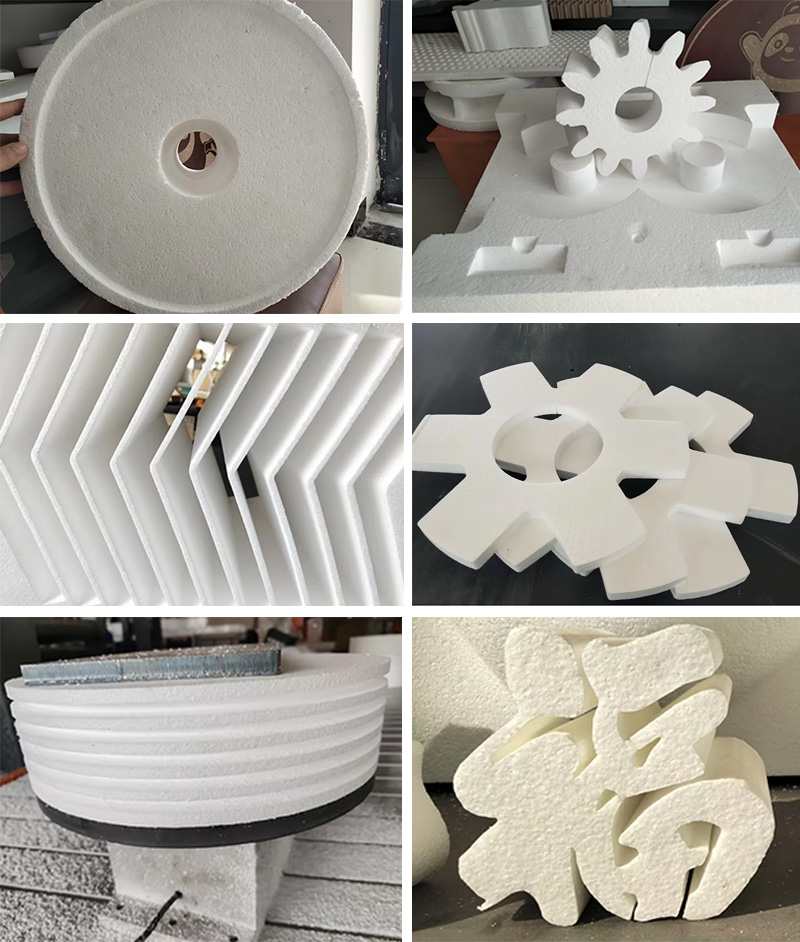

It is widely used for foam sculpture, EPS lines, insulation bricks, packaging and other foam applications.
