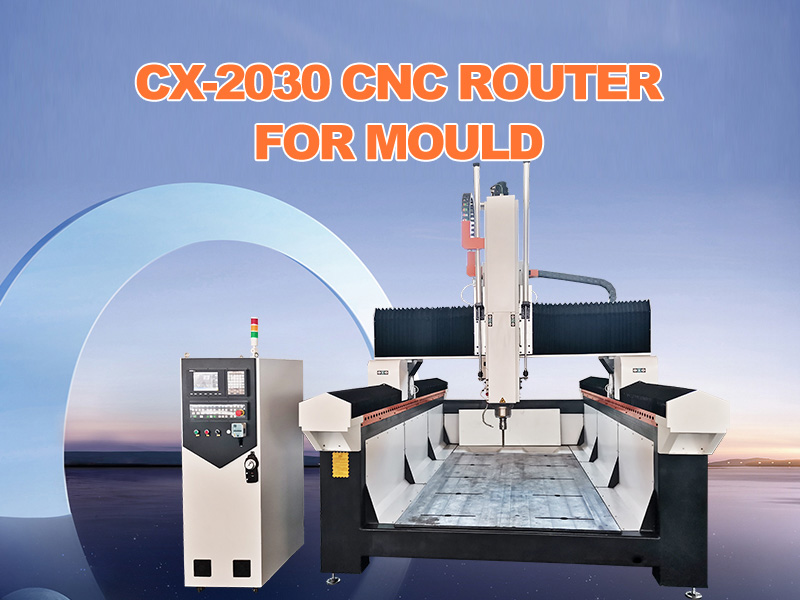

CX-2030 Foam Mould Machine (Steel Plate Platform)
CX-2030 Foam Mould Machine(Steel Plate Platform), can process not only foam, but also wood mold and a small amount of aluminum mold. The configuration is imported with original packaging. The conventional model is 2030, 2040, 4060, 5080, which uses BT40 main shaft to process different materials. The body adopts cast iron or steel plate countertops to ensure the stability of the entire machine processing.
Model:CX-2030
Send Inquiry
Product Description
CX-2030 Foam Mould Machine (Steel Plate Platform)
Product Feature:
1.Adopt large cross-section imported linear guide, lifelong maintenance-free self-lubrication.
2.With automatic tools changing spindle, the maximum speed of spindle reaches18000 RPM.
3.The whole EPC workbench, after strict annealing and other heat treatment processes, ensures the structural stability and rigidity of the bed.
4.Taiwan SYNTEC system, safe and reliable operation, efficient code reading speed, and with online simulation function, online monitoring function, to ensure the efficient and safe processing.

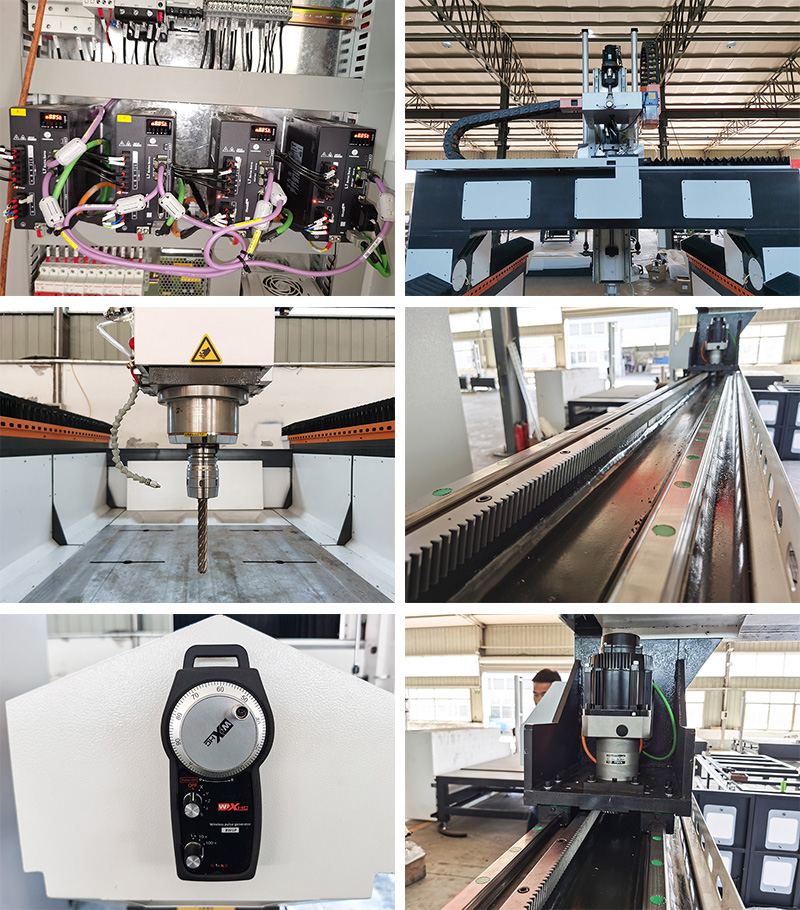

Detail Image:
Specification:
|
Model |
CX-2030 CNC ROUTER FOR MOULD |
|
Working table size |
W2000mm*L3000mm*H1000mm |
|
X-axis maximum travel |
2000mm |
|
Y-axis maximum travel |
3000mm |
|
Z axis maximum travel |
1000mm |
|
Distance from spindle extremity to worktable |
100-1000mm
|
|
Rotation Speed |
100-18000RPM |
|
Feeding Speed |
1-15000mm/min |
|
Fast feed speed |
X axis: 12000mm/min Y axis: 12000mm/min Z axis: 6000mm/min |
|
System resolution |
±0.04 |
|
File format |
G code |
|
Working table structure |
thickened carbon steel table≥15mm |
|
Working voltage |
AC380V/50HZ |
|
Drive system |
servomotor |
|
Machine bed |
Thickened square tube welding machine bed ( vertical steel ribs supporting on the side) |
|
Beam structure |
10mm thickened square tube welding (Steel ribs supporting inside) |
|
Ram structure |
X-axis 40mm thicken aluminum alloy Z-axis 30mm bottom plate + 60mm vertical steel ribs |
|
Control system |
Syntec 6mb |
|
Drivesystem |
Yaskawa1.3KW servo motor and Z axis with brake |
|
Drive reducer |
X/Y axis Shimpo reducer |
|
Transmission |
SquareRail 30 |
|
Z-axis screw |
Taiwan TBI ball screw |
|
Inverter |
XFT 7.5KW |
|
Spindle |
6KW air cooling( ER32, Maximum hold range is φ20mm) |
|
Cable |
flexible anti-interference cable special for CNC use |
|
Dustcover |
X/Y axis with organ-structured dust cover |

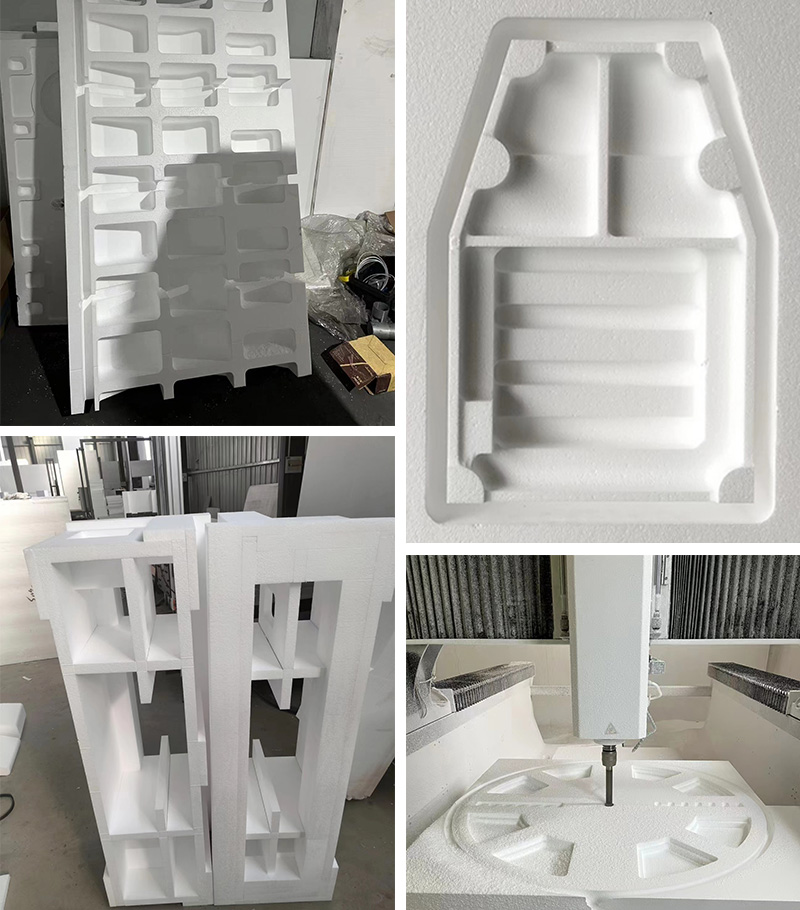

Suitable for processing foam, and can also process wooden molds and a small amount of aluminum molds
