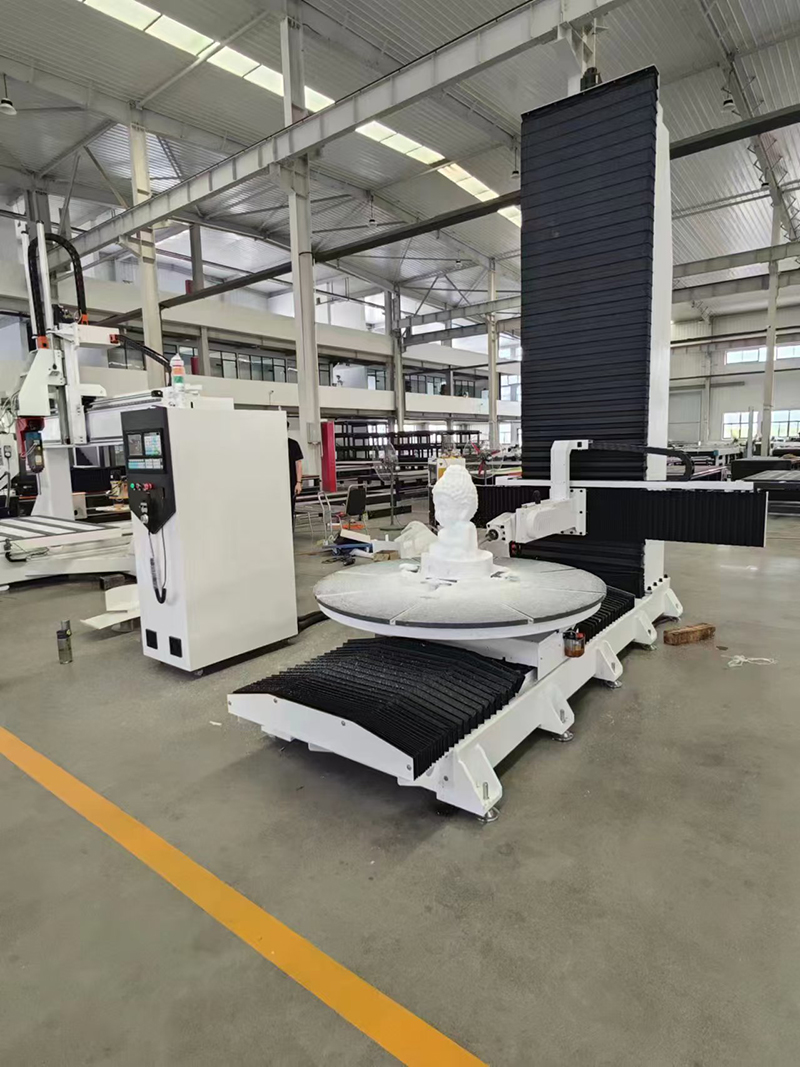

1525 Vertical 5 Axis Foam Engraving Machine
This 1525 Vertical 5 Axis Foam Engraving Machine is mainly used for vertical engraving and milling, side drilling and processing of composite material molds such as foam, wood molds, carbon fiber, etc. With Large-scale three-dimensional processing with engraving and milling diameter of 1500mm-2000mm and height of about 2500mm-3000mm. It adopts the vertical structure processing method of spindle swing head + rotating disk.
Model:CX-1525
Send Inquiry
Product Description

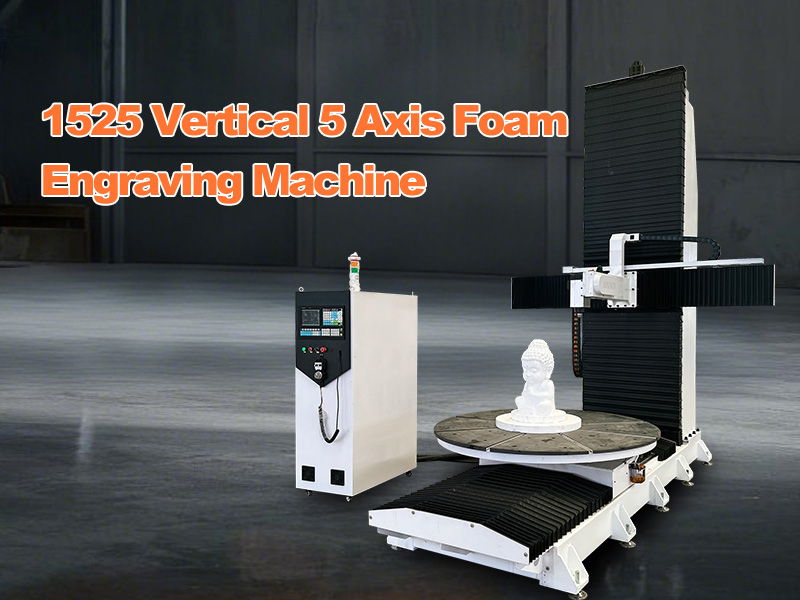

1525 Vertical 5 Axis Foam Engraving Machine
Product Feature:
1. Large-scale three-dimensional processing with engraving and milling diameter of 1500mm-2000mm and height of about 2500mm-3000mm.
2. It adopts the vertical structure processing method of spindle swing head + rotating disk.
3. It is mainly used for vertical engraving and milling, side drilling and processing of composite material molds such as foam, wood molds, carbon fiber, etc.
Specification:
|
Model |
1525 |
|
Processing Range |
Rotation diameter 1500mm-2000mm |
|
Height 2500mm-3000mm |
|
|
Operating System |
Five-axis customized system |
|
Table Structure |
Square tube base + rotating axis platform |
|
Spindle |
6kw air-cooled swing head spindle |
|
Maximum Tool Clamping |
φ20mm |
|
Spindle Speed |
18000rpm |
|
Support Guide Rail |
High-precision linear square rail |
|
Drive Screw |
Taiwan TBR high-precision lead screw |
|
Drive Motor |
Five-axis pure servo z-axis with brake |
|
Reducer |
Japan Shimpo reducer |
1. It is mainly used for vertical engraving and milling, side drilling and processing of composite material molds such as foam, wood molds, carbon fiber, etc.
