              Vibrate Knife Cutting Machine

              The Vibrate Knife Cutting Machine adopts Ruida control system, high precision, high efficiency, green and environmental protection automatic processing. It adopts vacuum adsorption table and high-power vacuum pump, and the air volume can reach 300m3/h. The cutting machine adopts square linear guide rail to ensure high precision and heavy load. The vibrating knife cutting machine is suitable for shoemaking, clothing, composite materials, bags, automobiles, advertising printing, electronics, decoration, furniture, etc.

              Send Inquiry

              Product Description

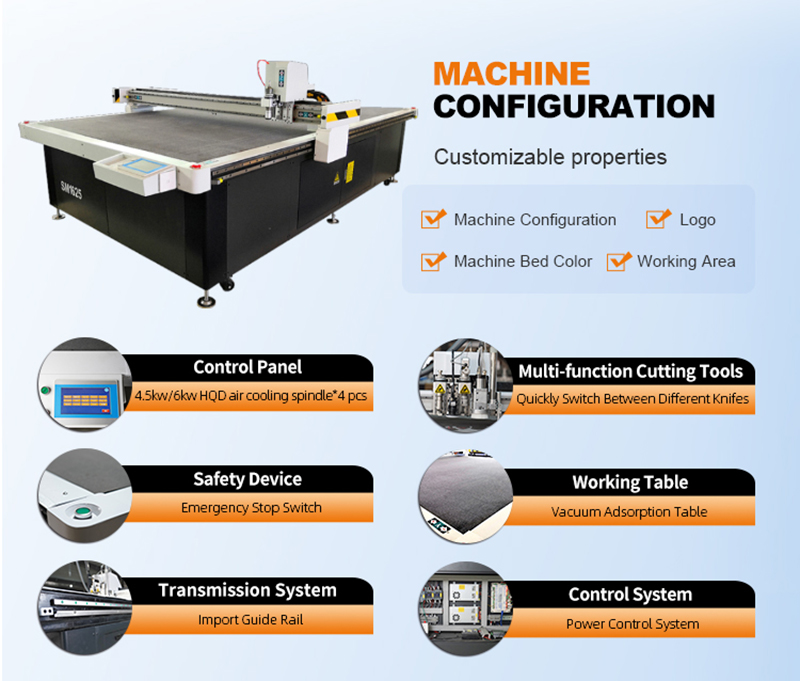

              Oscillating Vibrate Knife Cutting Machine Features:
              1.High speed: Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress
              2.High efficiency: don't need any die mold, or die mold cutting machine, this machine can press mark, cutting and molding on soft material such as leather, carton etc. Save much labor and cost.
              3.Low cost: one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.
              4.Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.

              5.Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.

              Technical Paramaters:

              X working size
              1600mm
              Y working size
              2500mm
              Z working size
              50mm, max cutting thickness of material is 50mm
              Cutting head
              cnc oscillating knife cutting head
              Display way
              English LED touch screen
              Machine table
              Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other soft material
              Data transfer way
              Intel
              Vacuum pump
              9KW air type vacuum pump
              Driving system
              Taiwan delta servo driver and motor
              Control system
              RD control system
              Guiding system
              Taiwan TBI square rail
              Weight
              About 1200kgs
              Size
              2250*3300*1650mm
              Power
              380V 50HZ

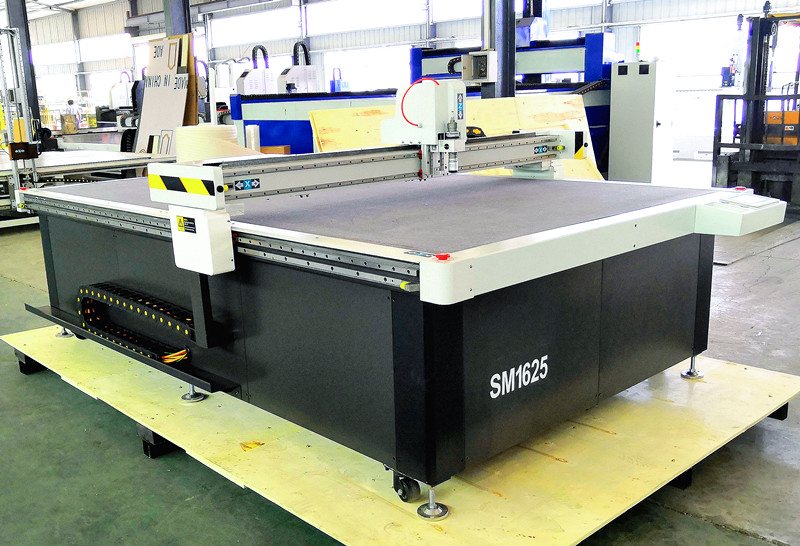

              Detail Image:


              Oscillating Knife Cutting Machine Application:
              Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
              It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
              Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.
