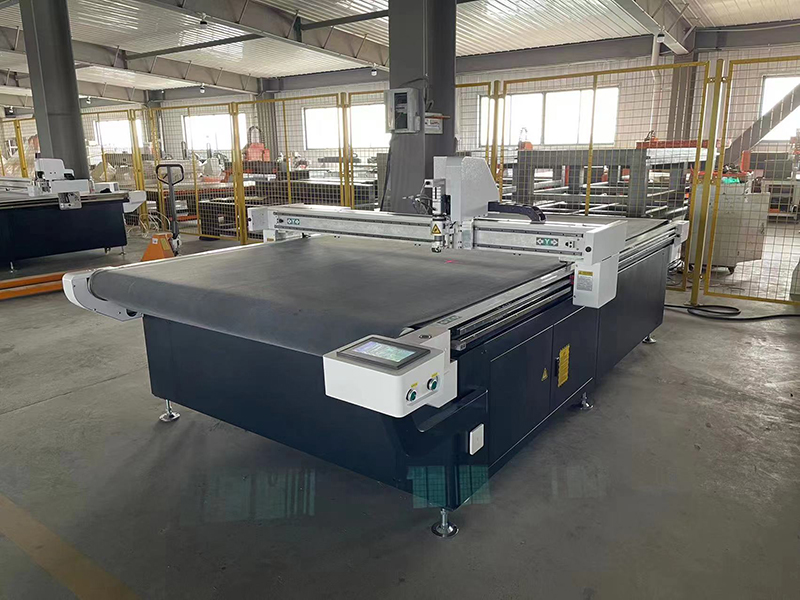

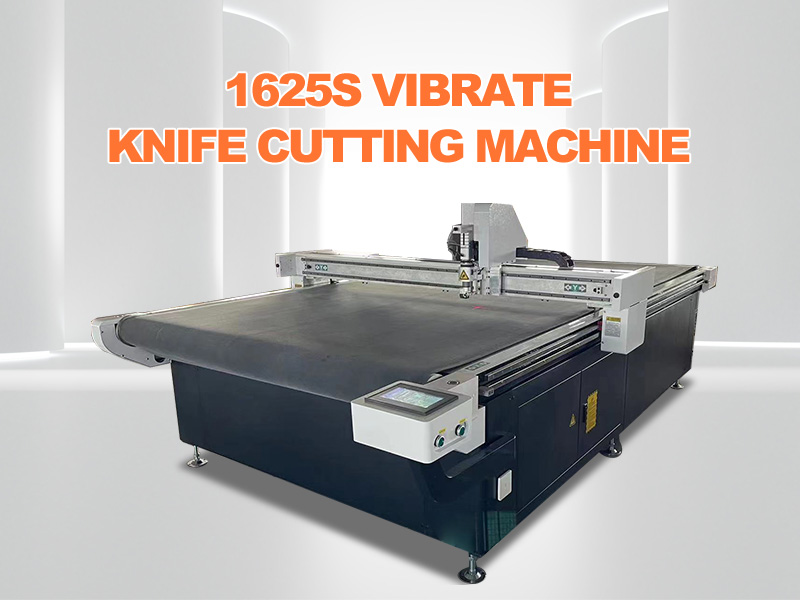

1625S Round Blade Vibrate Knife Cutting Machine
1625S Round Blade Vibrate Knife Cutting Machine is widely used for cutting fabrics and fibers. The signal line is placed in the crossbeam of the nose, so the machine runs more stably. Circular knife cutting the fabric improves the efficiency of traditional manual marking, ruler adjustment, material layout, and cutting rate, precise cutting.
Model:CX-1625S
Send Inquiry
Product Description
1625S Round Blade Vibrate Knife Cutting Machine
Fabric Cutting Machine Feature:
Laser emergency stop device, four laser beams, as long as the laser beam is blocked, the machine automatically stops working, to avoid the human body being touched by the moving tool head or cardboard raised and stuck the tool head. The signal line is placed in the crossbeam of the nose, so the machine runs more stably.
Taiwan imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.
The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.
The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.
Motors and drives adopt Taiwan Delta driver and all motors are fully digital.
With modular working cylinder, the table surface has strong adsorptive force.
Product configuration:
|
NO. |
Formation |
Brand and standards |
Performance Overview |
|
1 |
Bed body |
5mm steel pipe welded bed body |
Bare weight 450kg, sufficient weight, high rigidity, no deformation |
|
2 |
Vacuum adsorption platform |
42mm aluminum bellows platform |
Permanent non cracking and non deformation |
|
3 |
Servo motor |
Y750W/X400W/Z100W |
High torque, fast response speed, stable performance, and good anti-interference ability |
|
4 |
Reducer |
NEWGEAR |
High torque and precision |
|
5 |
Rail |
CSK |
High wear resistance accuracy, good noise reduction effect, easy maintenance |
|
6 |
Bearing |
NSK |
High wear resistance and precision, quiet operation |
|
7 |
Panzer chain |
|
Silent and highly flexible tank chain |
|
8 |
belt |
BOAOCD |
Low noise, buffering and vibration absorption |
|
9 |
switch power supply |
MEAN WELL |
Adequate current output, stable continuous operation |
|
10 |
relay |
CHINT |
High response frequency and long lifespan |
|
11 |
Leakage protector |
CHINT |
Stable and durable |
|
12 |
motor protector |
DELIXI |
Effectively protect the voltage and current of the vacuum pump to prevent pump burnout |
|
13 |
felt |
4mm felt |
|
|
14 |
vacuum pump |
7.5kw/three phase380V vacuum pump |
|
|
15 |
cable |
Industrial high flexibility cable |
Stretching exercise, resistant to bending and not easily broken |
|
16 |
Processing format |
Horizontal 1600mm x longitudinal 2500mm |
|
|
17 |
Machining accuracy |
±0.02mm |
|
|
18 |
repeatability |
±0.05mm |
|
|
19 |
Processing speed |
50mm/s-1800mm/s |
Depending on the thickness of the material |
|
20 |
power |
9.5kw |
|
|
21 |
Cutting system |
Shenzhen RUIDA |
|
|
22 |
materialheight |
30mm |
|
|
23 |
cutting tool |
Round knife+paint brush |
Cutting fabrics and leather with a round knife, writing with a paintbrush |
|
24 |
Digitizer |
Optional |
|
|
25 |
Scheduling software |
Optional |
|
|
26 |
Fabric roll bracket |
A simple fabric roll bracket |
|
|
27 |
Machine dimension weight |
L3700mmx W2200mmxH1300mm/900kg |
|
|
28 |
Wooden case |
3800mm*2300mm*1300mm/1000kg |
|
Application:
Leather, PU, Oxford cloth, seats, textile, and other flexible materials.
