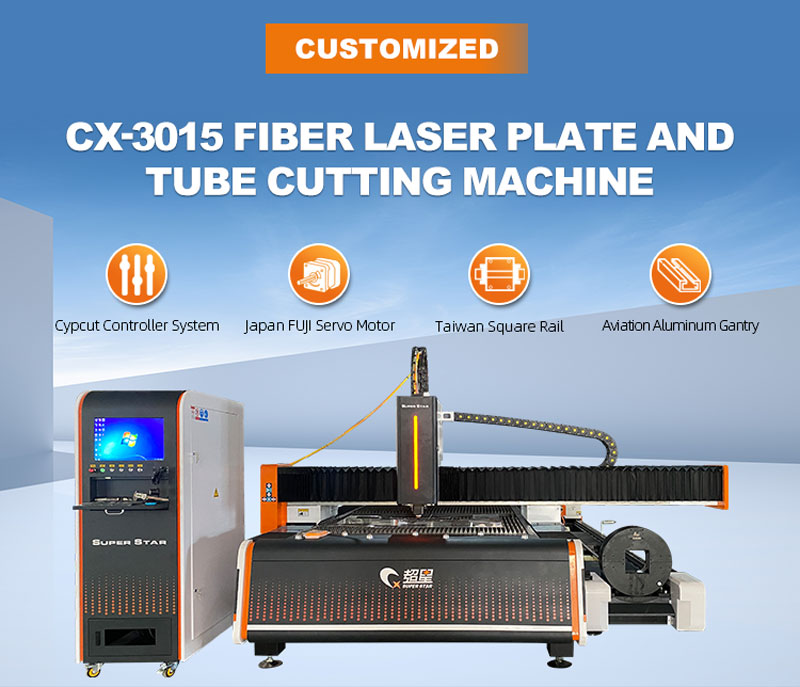

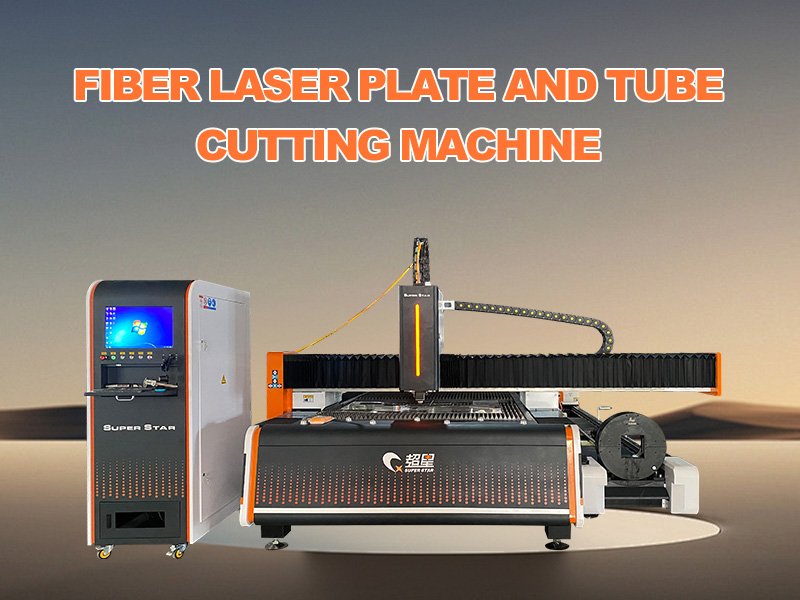

CX-3015HR Fiber Laser Plate and tube Cutting Machine
CX-3015HR Fiber Laser Plate and tube Cutting Machine can cut many kinds of metal sheet and metal tube, saving more than space and brings higher production efficiency. Mainly suitable for fast cutting of stainless steel, carbon steel, galvanized steel, electrolytic plate, brass plate, aluminum plate and other materials.
Model:CX-3015HR
Send Inquiry
Product Description
CX-3015HR Fiber Laser Plate and tube Cutting Machine
Product Feature:
1.Using industrial heavy-duty steel structure design and NC five-sided machining center to ensure machine accuracy and stability.
2.Using Schneider of France electrical appliances and IGUS cable of Germany.
3.Imported servo drive system and imported decelerator are adopted, which have fast running speed and strong stability.
4.Taiwan guideway and high precision grinding rack are used to ensure the long-time processing accuracy of the equipment.
5.Professional laser cutting control system with complete functions and simple operation
6.It has the characteristics of maintenance-free, energy saving and cost reduction.

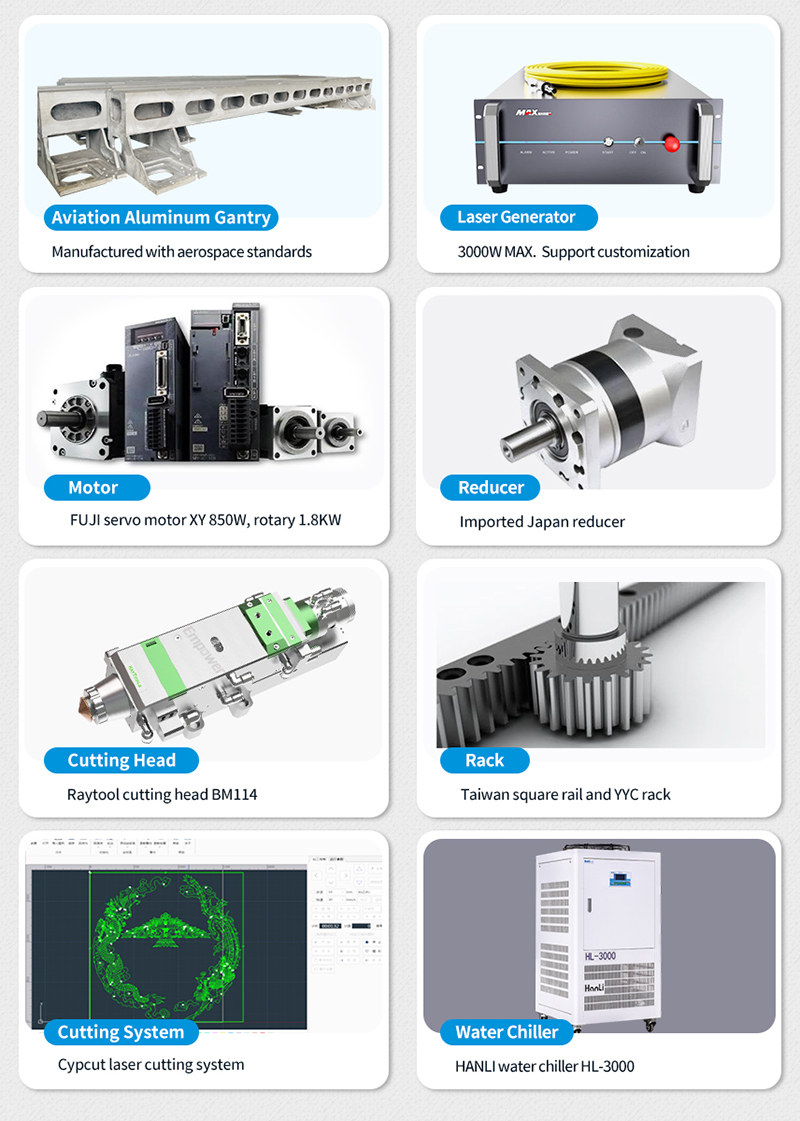

Detail Image:
Specification:
|
Model |
CX-3015HR |
|
Cutting Area |
Plate1500mm*3000mm; Rotary D220mmx L6000mm |
|
Laser Power |
1500W/3000W/6000W Reci |
|
ServoMotor |
Inovince X Y Axis 850W,Z 400W Rotary Y Axis1.3KW, A Axis1.8KW |
|
Controller system |
Cypcut2000/3000/BM06K RaytoolsBM110automatic head |
|
X.Y Guide Rail |
Taiwan KINGTEK 25/30 |
|
Rack |
Germany 1.5M |
|
Operating System |
Windows 98, Windows XP, Vista |
|
Interface |
LCD screen with USB interface |
|
CAD Design Software |
Available (Optional) |
|
Supported Format |
BMP. HPGL(PLT),DXF,G-CODE,DST,AI |
|
Working Voltage |
AC380V/ 50HZ |
|
Water Chiller |
Mp-1500/3000/6000 |

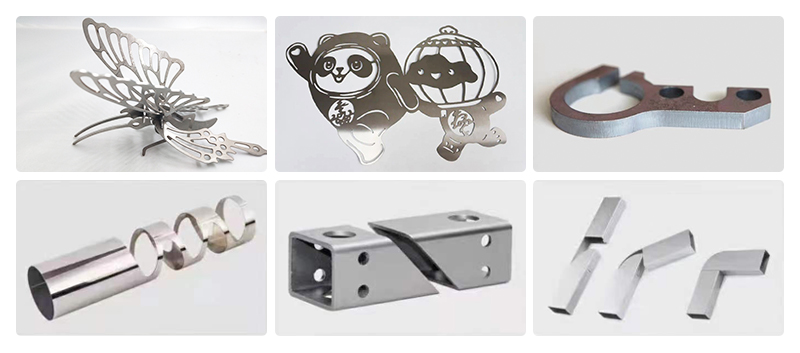

Mainly suitable for fast cutting of stainless steel, carbon steel, galvanized steel, electrolytic plate, brass plate, aluminum plate and other materials.
