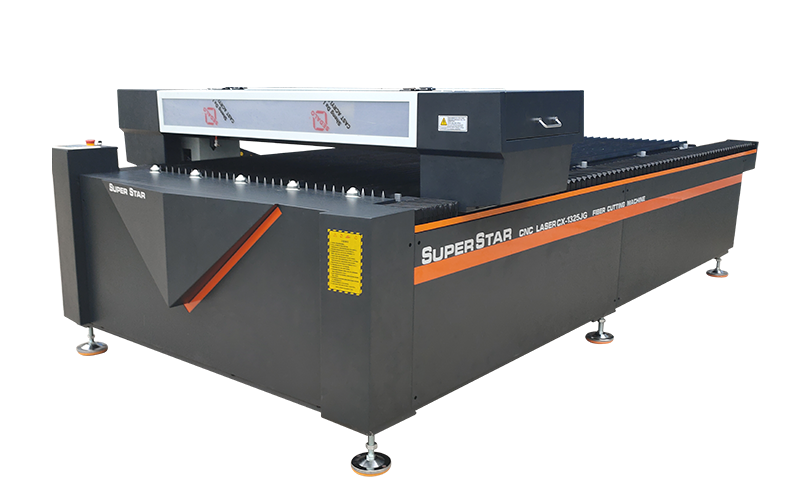

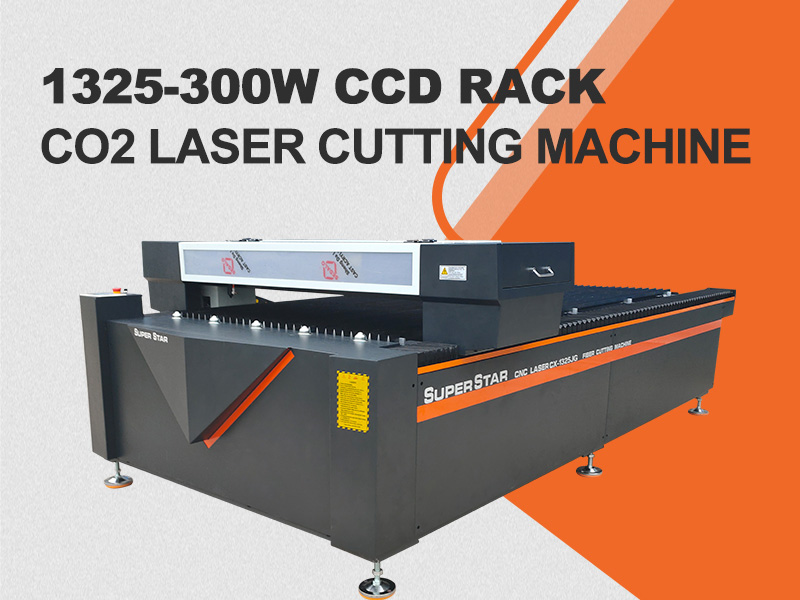

1325-300W CCD Rack Co2 Laser Cutting Machine

1325-300WCCD rack co2 laser cutting machine has high quality rack rail transmission, high speed, high accuracy and wear resistance. With high-speed motor and driver, 24 hours long time running without losing step. Suitable for wooden products, stone, double color plate, plastic cloth, leather, etc., applied in advertising, clothing, leather, craft, paper cut toys, wooden craft engraving machine, bamboo carving and other industry.

Model:CX-1325-300W

Send Inquiry

Product Description

1325-300W CCD Rack Co2 Laser Cutting Machine

Product Feature

1.Touch screen control system, USB offline use, more convenient to use; add breakpoint continuation function.

2.The software is compatible with CorelDraw, AutoCAD, Photoshop and all kinds of graphic processing software. Directly original output function, none error.

3.Choose high-speed motor and driver, 24 hours long time running without losing step.

4.The humanized design makes you more flexible in production and processing.

5.With high quality rack rail transmission, high speed, high accuracy and wear resistance.

Specification:

Model	1325-300WCCD Rack Co2 Laser Cutting Machine
X. Y Cutting Area	1300*2500mm
Laser Power	300W Xinrui
Laser type	Hermetic and detached CO2 laser tube, water-cooling
Engraving Speed	0--1200mm/s
Cutting Speed	0--600mm/s
Re-position Accuracy	+_0.01mm
Maximum scanning precision	0.0254mm
Positioning precision	0.01mm
Communication interface	USB
Minimum Letter Size	English 1mm
X.Y Guiding System	Guide Rails 20mm and Y rack,Z screw
Driving System	Leadshine 758 easy Servo Motor
Controller system	RD system with CCD
Water chiller	CW5300 water chiller
Operating System	Windows 98, Windows XP, Vista
Interface	LCD screen with USB interface
Design software	Coreldraw(11/12/X3/X4/X5/X6),AutoCAD(compatible); Photoshop
Supported Format	HPGL(PLT),DXF,G-CODE,DST,AI
Working Voltage	Single phase AC220V 50-60Hz
Warranty	One year for whole machine except of laser tube(2500 hours) and lens
Packing Size	300519251050mm
