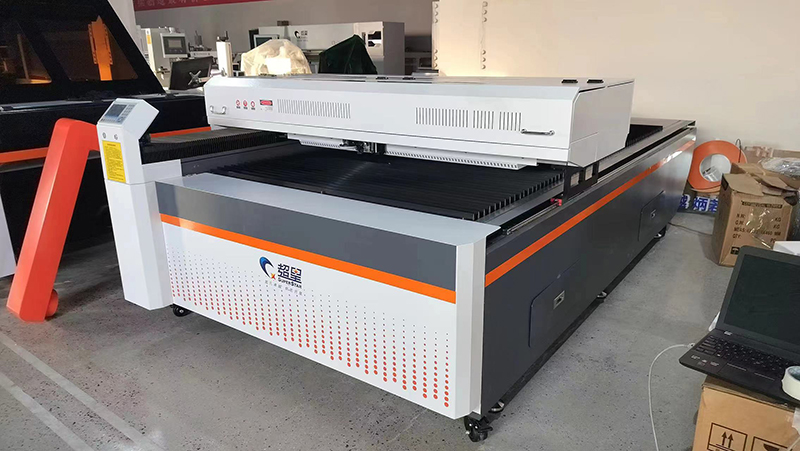

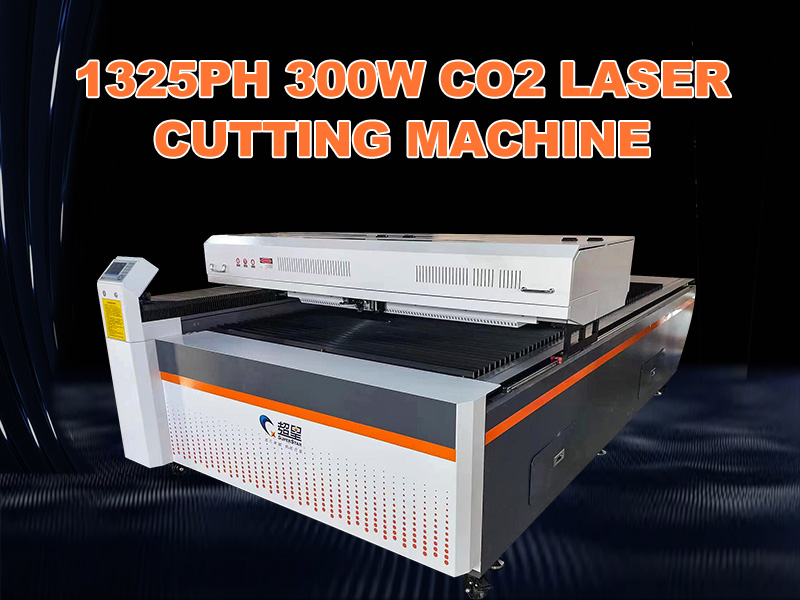

1325ph 300w Co2 Laser Cutting Machine
1325ph 300w Co2 Laser Cutting Machine,This is 1325-300W Screw CO2 laser cutting machine. It is used for precision cutting of non-metallic materials such as acrylic, wood board, cardboard, plastic, rubber, leather, etc.
Model:1325PH-300W
Send Inquiry
Product Description
1325ph 300w Co2 Laser Cutting Machine
Technical Parameters
|
Model |
1325PH-300W |
|
Laser type |
Co2 Enclosed Laser Tube 300W SLW |
|
Maximum Processing Range At One Time |
1250*2450mm |
|
Maximum Feed Width |
1350mm |
|
Total Weight |
1050KG |
|
Fastest Movement Speed |
60m/min |
|
Fastest Working Speed |
40m/min |
|
Best Cutting Speed Range |
1mm/s-180mm/s |
|
Speed Control |
0-100% Stepless Control |
|
Laser Energy Control |
RD CCD Software Control/Manual Adjustment |
|
Laser Tube Cooling |
Forced Water Cooling (Industrial Chiller) |
|
Mechanical Resolution |
0.025mm |
|
Thickest Cutting Depth |
30mm(Acrylic For Example) |
|
Repeat Positioning Accuracy |
±0.1mm |
|
Power Supply |
AC220V±15% 50HZ |
|
Main Unit Power |
≤3000W |
|
Support Software Format |
BMP PLT DST AI DXF DWG |
|
Driving System |
Servo Motor, XY Axis Screw |
|
Working Environment Temperature |
0℃～45℃ |
|
Water Chiller |
CW5300 |
|
Machine Size |
3600*2100*1250mm |
It is used for precision cutting of non-metallic materials such as acrylic, wood board, cardboard, plastic, rubber, leather, etc. It is typically used for precision model cutting, precision tooling cutting, and edge patrol cutting in the later stages of UV printing.
