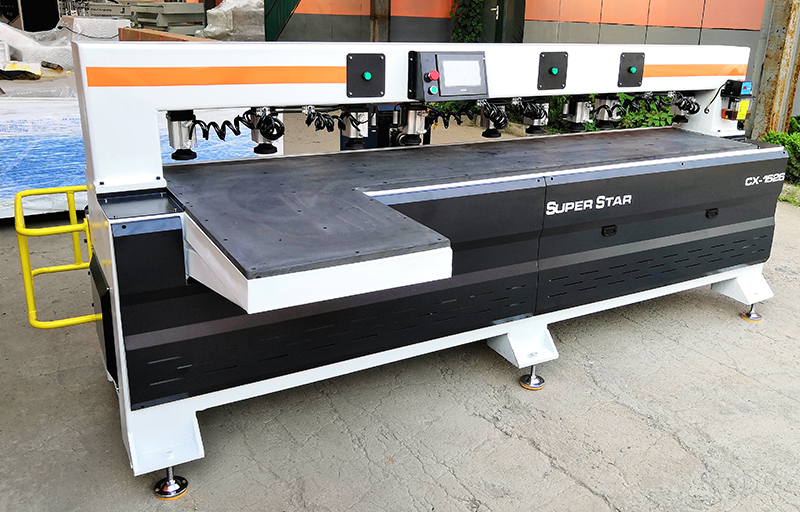

Side Hole Drilling Machine

TheSide Hole Drilling Machine adopts a vacuum table, which has a large suction force and can punch small materials. With high precision, it can recognize the preparation contour on the material and cut it accurately. Using Taiwan square rail, the operation is more stable. It is mainly used for drilling wood boards of cabinets, doors, panels, office furniture, doors, windows and chairs.

Send Inquiry

Product Description

Drilling Machine For Furniture :

1. The machine is a special design for side holes drilling of plate furniture;
2. The side holes can be achieved through scanning the barcode and Infrared sensor
3. It can drill multi kinds of hole quickly and accurately. No need repeatedly adjusting,
4.Control system adopts PLC touch screen.

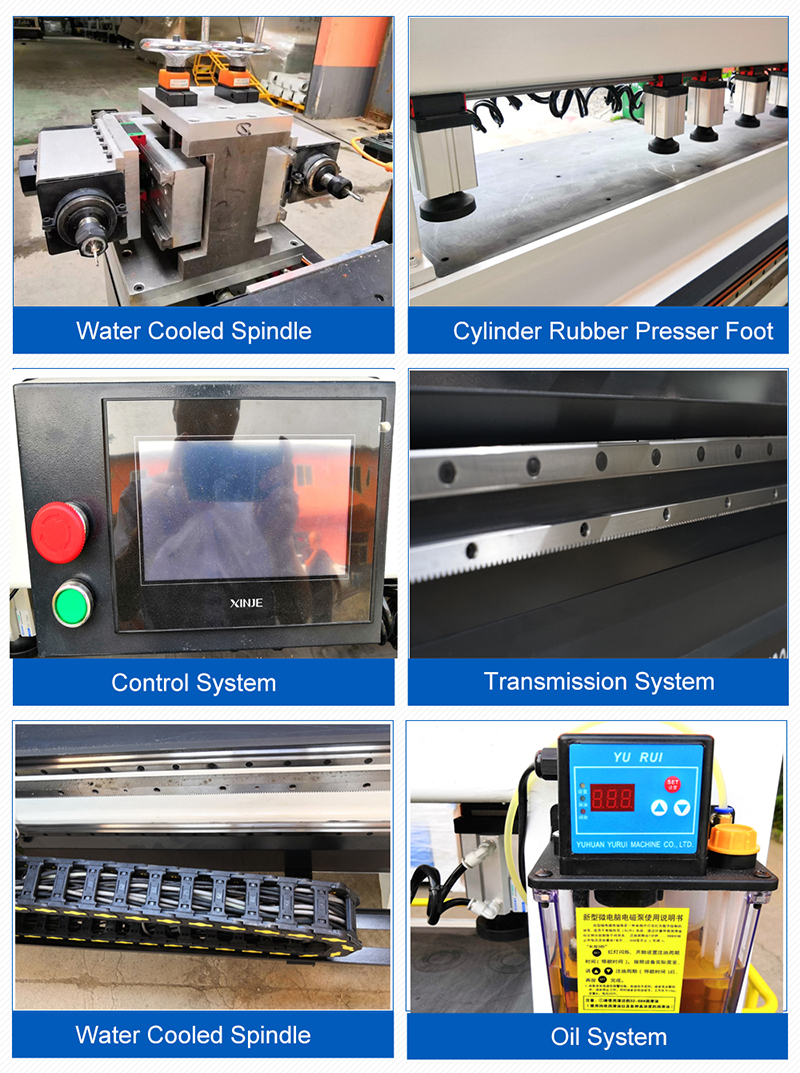

Detail Image:

Specification:

Name	Side hole drilling machine
Spindle	HQD 2.2KW air cooling spindle
XY Working area:	X:100mm,Y:2500mm(Maximum length)
Spindle	3.0kw water cooling spindle
Motor	stepper
Working table	PVC table structure(compacted board)
Guide rail	Linear square/Taiwan Hiwin
Work-piece thickness	≤30mm
Lubrication system	Auto lubrication pump
Inverter	XFT
Voltage	3Phase 380V/220V, 50Hz/60Hz

Applicable Industry:

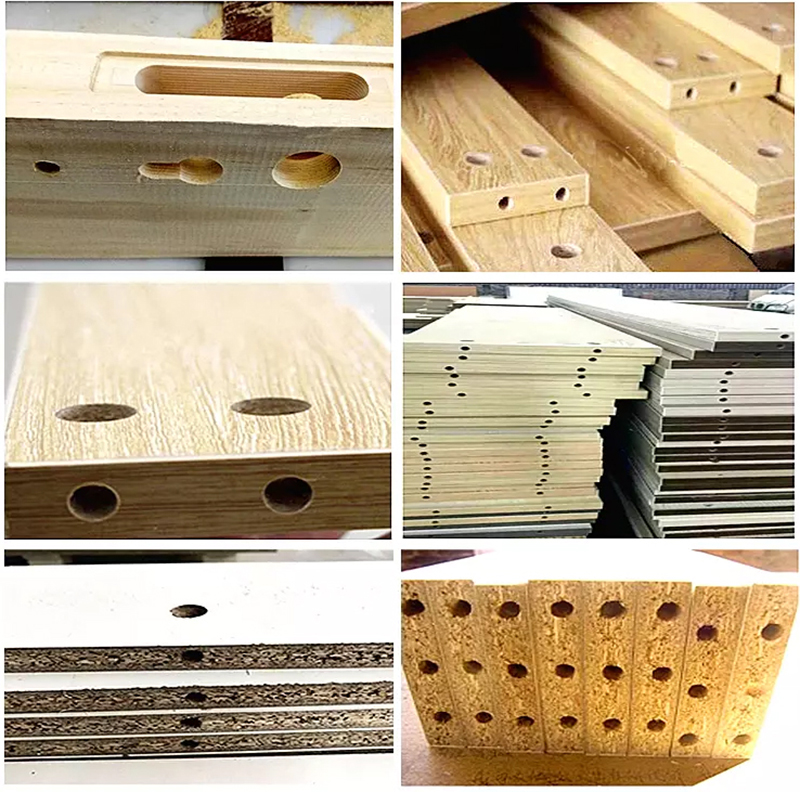

Horizontal drilling hole CNC router is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.
The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments
