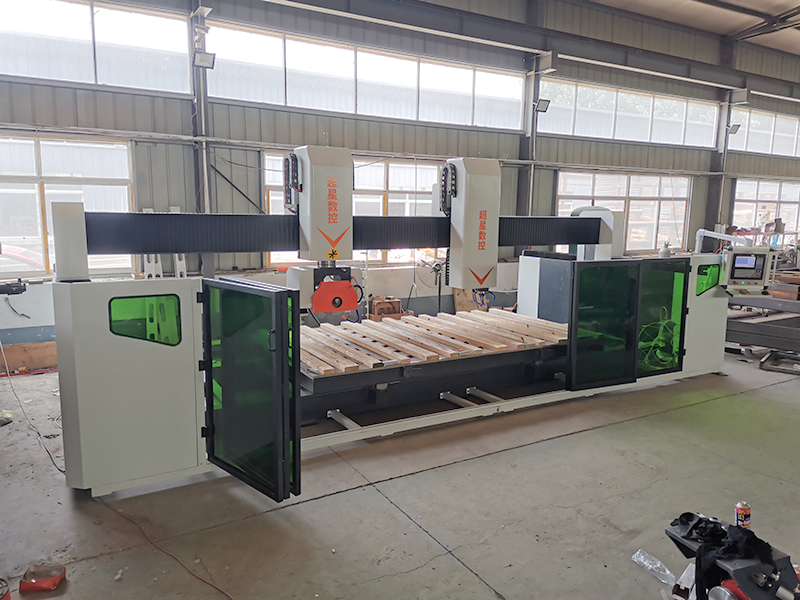

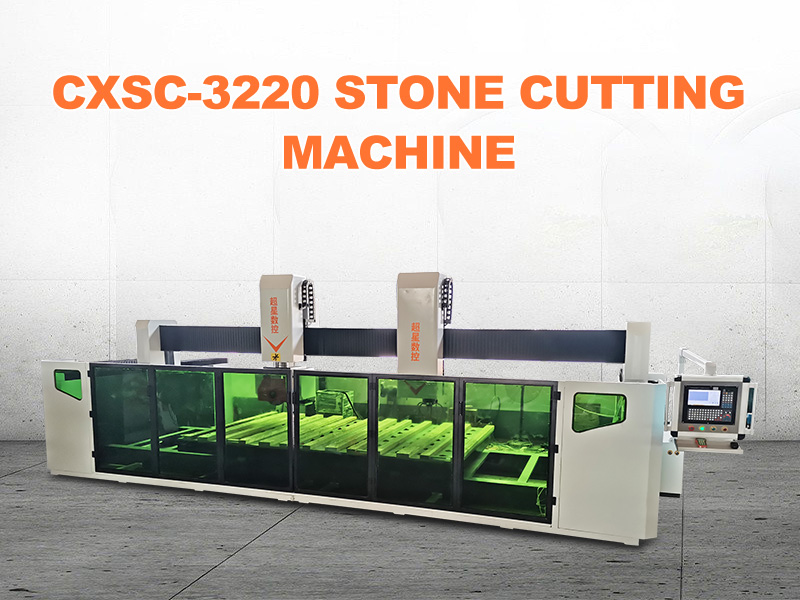

CXSC-3220 Stone Cutting Machine
CXSC-3220 Stone Cutting Machine. The machine head can swing at any angle to cut the plate at any angle and any shape. The workbench can be turned 85 degree for easy loading and unloading. It can process slate, marble, artificial stone, granite and other stones.
Model:CXSC-3220
Send Inquiry
Product Description
CXSC-3220 Stone Cutting Machine
Product Feature:
1.The machine head can swing at any angle and can cut the plate at any angle and shape: horizontal cutting, longitudinal cutting, arc cutting, elliptical cutting, and round cutting. The machine can also be used for bump edging.
2.In addition to the cutting shape, it can also cut the large plate with 45° chamfering, opening the basin hole, stove hole, and diagonal cutting
3.The platform can be turned by 85°, which is convenient for loading and unloading.
4.No complicated operations, just input data on the control system.
Equipped with a grinding wheel device, which can polish the table hole and cutting surface.

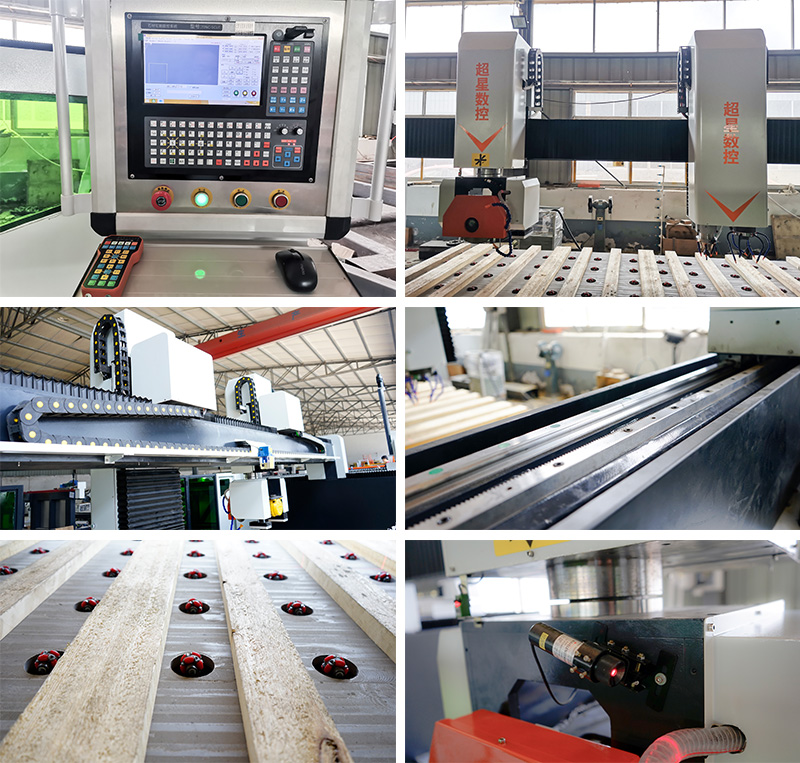

Detail Image:
Specification:
|
Model |
CXSC-3220 |
|
Processing Size |
3200*2000mm |
|
Saw Blade Diameter |
350mm |
|
Cutting Thickness |
50mm |
|
Control System |
Superstar stone control system |
|
Platform Flap Angle |
0-85° |
|
Head Rotation Angle |
0-360° |
|
Tilt Angle Of Nose |
0 °or 45° |
|
transfer Method |
X-Y-A axis gear drive, Z axis screw drive |
|
Cutting Speed |
600-9000mm/mim |
|
Drive Mode |
High-precision servo control of key parts angle tilting high-torque stepper motor |
|
Motor Way |
Special cutting motor, waterproof and high temperature resistant |
|
Programmatically |
Manual/Graphic import |
|
Edge Grinding Power |
5.5kw*2 |
|
Wheel Diameter |
30mm |
|
Hole Cutter Diameter |
10 mm |
|
Control System |
With wireless handle, flexible operation |
|
Body Weight |
4600KGS |
|
Dimension |
6100*3230*3000 |
|
Rails |
TAIWAN linear square rails 30 |
|
Total Power |
20kw |

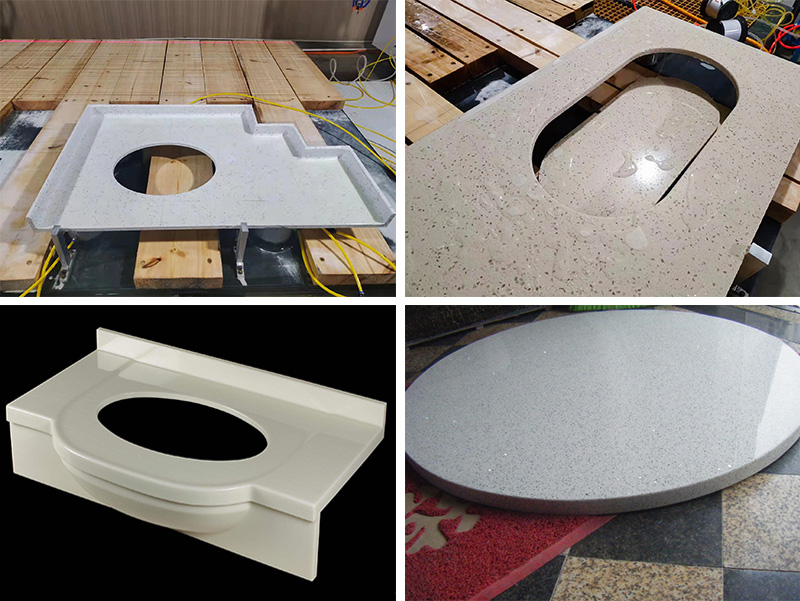

It can process slate, marble, artificial stone, granite and other stones.
